Kubelet
In this part of tutorial we will configure (it is better to say that we will partially configure) kubelet on our server.
But before we will configure kubelet, lets talk a bit about it.
As mentioned in the official kubernetes documentation:
An agent that runs on each node in the cluster. It makes sure that containers are running in a Pod. The kubelet takes a set of PodSpecs that are provided through various mechanisms and ensures that the containers described in those PodSpecs are running and healthy.

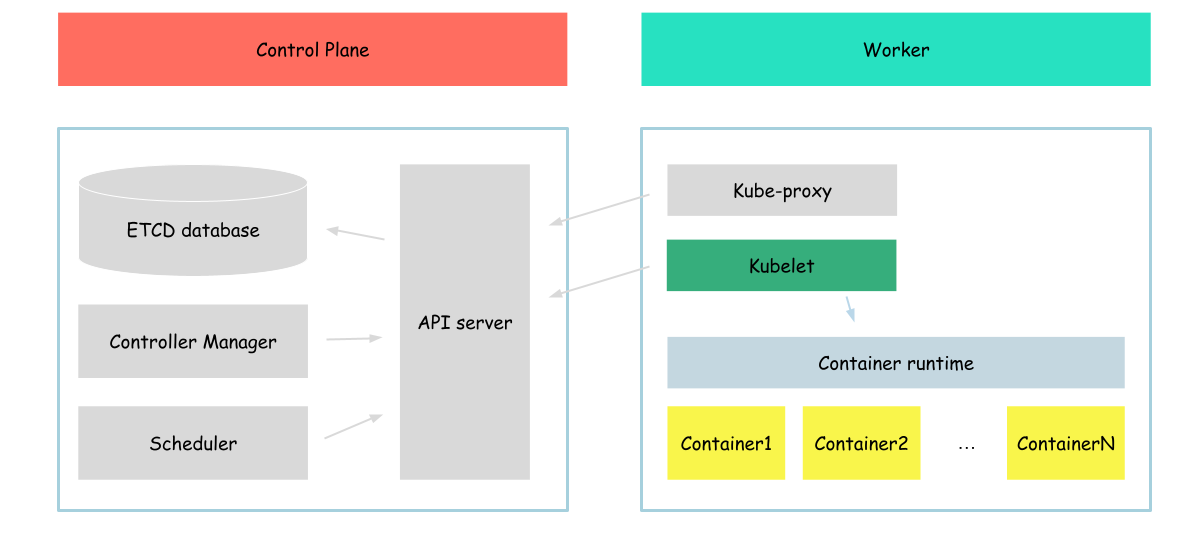

As we can see, in this section we will work with the next layer of kubernetes components (if I can say so). Previously we worked with containers, but on this step we will work with other afteraction kubernetes has - pod.
As you remember at the end, kubernetes usually start pods. So now we will try to create it. But it a bit not usual way, instead of using kubernetes api (which we didn't configured yet), we will create pods with the usage of kubelet only. To do that we will use the static pods functionality.
So, lets begin.
First of all we need to download kubelet.
wget -q --show-progress --https-only --timestamping \
https://storage.googleapis.com/kubernetes-release/release/v1.21.0/bin/linux/amd64/kubelet
After download process complete, muve kubelet binaries to the proper folder
{
chmod +x kubelet
sudo mv kubelet /usr/local/bin/
}
As kubelet is a service which is used to manage pods running on the node, we need to configure that service
cat <<EOF | sudo tee /etc/systemd/system/kubelet.service
[Unit]
Description=kubelet: The Kubernetes Node Agent
Documentation=https://kubernetes.io/docs/home/
Wants=network-online.target
After=network-online.target
[Service]
ExecStart=/usr/local/bin/kubelet \\
--container-runtime=remote \\
--container-runtime-endpoint=unix:///var/run/containerd/containerd.sock \\
--image-pull-progress-deadline=2m \\
--file-check-frequency=10s \\
--pod-manifest-path='/etc/kubernetes/manifests/' \\
--v=10
Restart=always
StartLimitInterval=0
RestartSec=10
[Install]
WantedBy=multi-user.target
EOF
The main configuration parameters here:
- --container-runtime-endpoint - linux soket on which containerd listed for the requests
- --file-check-frequency - how often kubelet will check for the updates of static pods
- --pod-manifest-path - directory where we will place our pod manifest files
After our service configured, we can start it
{
sudo systemctl daemon-reload
sudo systemctl enable kubelet
sudo systemctl start kubelet
}
To ensure that our service successfully started, run
sudo systemctl status kubelet
The output should be similar to
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/etc/systemd/system/kubelet.service; enabled; vendor preset: enabled)
Active: active (running) since Sat 2023-04-15 22:01:06 UTC; 2s ago
Docs: https://kubernetes.io/docs/home/
Main PID: 16701 (kubelet)
Tasks: 7 (limit: 2275)
Memory: 14.8M
CGroup: /system.slice/kubelet.service
└─16701 /usr/local/bin/kubelet --container-runtime=remote --container-runtime-endpoint=unix:///var/run/containerd/containerd.sock --image-pull-progress-deadline=2m --v=2
...
After kubelet service up and running, we can start creating our pods.
Before we will create static pod manifests, we need to create folders where we will place our pods (same as we configured in kubelet)
{
mkdir /etc/kubernetes
mkdir /etc/kubernetes/manifests
}
After directory created, we can create static pod with busybox container inside
cat <<EOF> /etc/kubernetes/manifests/static-pod.yml
apiVersion: v1
kind: Pod
metadata:
name: static-pod
labels:
app: static-pod
spec:
hostNetwork: true
containers:
- name: busybox
image: busybox
command: ["sh", "-c", "while true; do echo 'Hello from static pod'; sleep 5; done"]
EOF
Now lets use the ctr tool we already know to list the containers created
ctr containers ls
Output:
CONTAINER IMAGE RUNTIME
Looks like containerd didn't created any containrs yet? Of course it may be true, but based on the output of ctr command we can't confirm that.
Containerd has namespace feature. Namespace is a mechanism used to provide isolation and separation between different sets of resources.
We can check containerd namespaces by running
ctr namespace ls
Output:
NAME LABELS
default
k8s.io
Containers created by kubelet located in the k8s.io namespace, to see them run
ctr --namespace k8s.io containers ls
Output:
CONTAINER IMAGE RUNTIME
33d2725dd9f343de6dd0d4b77161a532ae17d410b266efb31862605453eb54e0 k8s.gcr.io/pause:3.2 io.containerd.runtime.v1.linux
e75eb4ac89f32ccfb6dc6e894cb6b4429b6dc70eba832bc6dea4dc69b03dec6e sha256:af2c3e96bcf1a80da1d9b57ec0adc29f73f773a4a115344b7e06aec982157a33 io.containerd.runtime.v1.linux
And to get container status we can call
ctr --namespace k8s.io task ls
Output:
TASK PID STATUS
e75eb4ac89f32ccfb6dc6e894cb6b4429b6dc70eba832bc6dea4dc69b03dec6e 1524 RUNNING
33d2725dd9f343de6dd0d4b77161a532ae17d410b266efb31862605453eb54e0 1472 RUNNING
But it is not what we expected, we expected to see container named busybox. Of course there is no majic, all anformation about pod to which this container belongs to, kubernetes containername, etc are located in the metadata on the container, and can be easilly extracted with the usage of other crt command (like this - ctr --namespace k8s.io containers info a597ed1f8dee6a43d398173754fd028c7ac481ee27e09ad4642187ed408814b4). but we want to see it in a bit more readable format, this is why, we will use different tool - crictl.
In Comparison to the ctr (which can work with containerd only), crictl is a tool which interracts with any CRI compliant runtime, containerd is only runtime we use in this tutorial. Also, cri ctl provide information in more "kubernetes" way (i mean it can show pods and containers with names like in kubernetes).
So, lets download crictl binaries
wget -q --show-progress --https-only --timestamping \
https://github.com/kubernetes-sigs/cri-tools/releases/download/v1.21.0/crictl-v1.21.0-linux-amd64.tar.gz
After download process complete, move crictl binaries to the proper folder
{
tar -xvf crictl-v1.21.0-linux-amd64.tar.gz
chmod +x crictl
sudo mv crictl /usr/local/bin/
}
And configure it a bit
cat <<EOF> /etc/crictl.yaml
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF
As already mentioned, crictl can be configured to use any CRI complient runtime, in our case we configured containerd (by providing containerd socket path).
And we can finaly get the list of pods running on our server
crictl pods
Outout:
POD ID CREATED STATE NAME NAMESPACE ATTEMPT RUNTIME
16595e954ab3e 8 minutes ago Ready static-pod-example-server default 0 (default)
As we can see our pod is up and running.
Also, we can check the containers running inside our pod
crictl ps
Output:
CONTAINER IMAGE CREATED STATE NAME ATTEMPT POD ID
912487fb63f9e 7cfbbec8963d8 10 minutes ago Running busybox 0 16595e954ab3e
Looks like our container is in running state. Lets check its logs.
crictl logs $(crictl ps -q)
Output:
Hello from static pod
Hello from static pod
Hello from static pod
...
Great, now we can run pods on our server.
Now, lets clean up our worspace and continue with the next section
rm /etc/kubernetes/manifests/static-pod.yml
It takes some time to remove the pods, we can ensure that pod are deleted by running
{
crictl pods
crictl ps
}
The output shuld be empty.
Next: Pod networking
